Production Line Motor Testing Machine Low Power With High Voltage Output

Brand Name : AIP

Model Number : AIP89XX

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Supply Ability : 50 sets per month

Delivery Time : 45 working days

Packaging Details : Wooden case

Product : Low power motor testing machine

Application : Motor Testing

High voltage output : 3KV/5KV

Test time : 8s

Station : 2 stations

Warranty : 12 months

Contact Now

Low Power Motor Testing Machine For Production Line / With High Voltage Output

1. Test object: motor with low power

2. Technical specification:

Insulation resistance
output voltage setting range/precision	DC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range/precision	1～500MΩ ≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ)
insulation resistance alarm setting range	Max: 0～500MΩ; Min: 1～500MΩ
test time range/resolution	0.5～999s 0.1s/step
AC Hipot
Output voltage setting range and precision	AC 200～3000V ±(2%×setting value+10V)
breakdown current testing range/precision	0.10～20.00mA ±(2%×display value+0.05 mA)
Hipot current presetting alarm range	Max:0.10～20.00mA；Min:0.00～20.00mA
test time range/resolution	0.5～999.9s 0.1s/step
DC winding resistance test
testing range and precision	10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set.
test time range/resolution	0.5～999s 0.1s/step
temperature compensation function	Yes
temperature probe/range	DS18b20 -10.0℃~+50.0℃
precision	±0.5°C(range: -10℃~+50℃)
Surge
output voltage setting range/precision	500～3000V ±(3%×display value+8V)
sampling frequency	100MHz
waveform comparison	area, area difference, corona and phase 3 waveforms displayed in the testing interface
Direction of rotation
rotation	CW, CCW, still
No-load
voltage testing range and precision	AC:30～500V ±(0.5%×display value+1 word)
current testing range and precision	AC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision	0.6-1500W ±(0.5%×display value+5 words)
Low voltage start
voltage testing range and precision	AC:30～500V ±(0.5%×display value+1 words)
current testing range and precision	AC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision	0.6-1500W ±(0.5%×display value+5 words)
Stall
voltage testing range and precision	AC:30～500V ±(0.5%×display value+1 word)
current testing range and precision	AC:0.02～5.0A ±(0.5%×display value+2 words)
power testing range and precision	0.6-1500W ±(0.5%×display value+5 words)

4. After-sales service

4.1 The testing system has the function of self-diagnose, which could diagnose itself automatically when switch-on the testing system.

4.2 The instrument of the testing system is made of several card modules. All of these function card can be dismantled and changed easily.

4.3 Support remote control failure diagnoses. The failure can be diagnosed and solved via remote control easily.

Product Tags:

electric motor testing equipment

electric motor testing panel

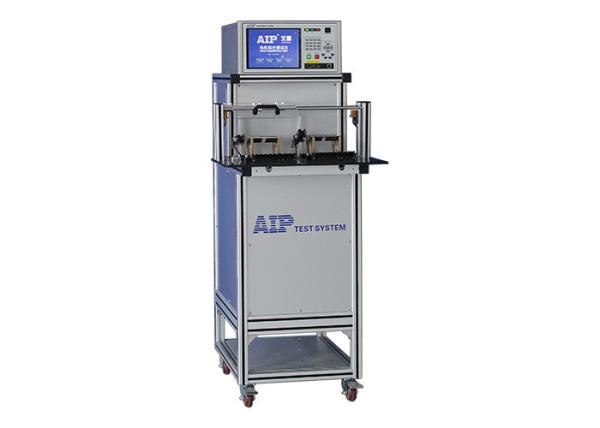

Production Line Motor Testing Machine Low Power With High Voltage Output Images
